Note from Kayarchy: This is from Grant Glazer's "Hints & Tips" pages.
Because those pages have been offline for some years, I've reposted this one to keep it accesssible.
You should be able to spend as much time in the kayak as you can in a car seat. There is one major difference - you don't want the back higher then the cockpit rim. Not only will it interfere with rolling but it will also wear out your spray skirt by constant rubbing. A high seat-back is also unnecessary since you should have a straight back or a slight forward lean when paddling. Lumber support is all that is needed and is more comfortable. The other design features of a car seat do apply. It should be:
- Well padded
- Angled up from back to front
- Long enough to give support well up the back of your thighs
- Higher side edges to stop you from sliding around
- Front edge curved over or of very soft padding
- Gap underneath (to avoid hull wear and allow for water flow)
When planning out the seat make sure it is as low as you can get it. Most of your weight is concentrated at the back of seat. If you sit too high in the kayak, it can greatly affect the stability of the kayak. Even a 1cm adjustment can make a large difference.
You can make the seat out of fiberglass but closed cell foam is much easier to use and comes ready padded. I have yet to find a good cheap supply of thick foam in NZ but most kayak shops either stock it or will get it in for you. 1/2 a square meter should be enough. Other sources of supply include an old boogie board, art packaging, or a cheap backpackers mattress from The Warehouse. This last option will require you to glue up layers to get the right thickness.
Once you have enough material, there are two ways of shaping the seat. You can heat the foam to 140 deg Cel then sit on it. The softened foam will shape to a perfect inverse image of your rear, and will retain its shape once cooled. You should be wearing your normal paddling outfit when you do this. For some reason sitting on 140deg's kinda' put me off this method. So I went for option 2, carving the foam.
Here are a few great web sites that explains this process better then I could:
http://www.kayakfit.com/
[GRANT'S OTHER TWO LINKS ARE DEAD]
Although I will add a couple of hints to the above process:
Drill the Foam
I found the easiest way of removing large quantities of foam was with a steel brush drill bit. Make sure the foam is unable to move about by jamming it between pieces of wood which are clamped to the work bench. Do not use any pressure at all and hold the drill with both hands. This is a VERY messy process, but a vacuum cleaner quickly tidies up the foam dust.
Grate and Sand it
A small SureForm or Surform is ideal for fine tuning the shape. Once the rough shape has been created, try it out for fit and comfort. It is usable as is but why have a ugly seat when you have spent so much time on the kayak's finish? Sand the seat with sandpaper to get a velvet finish. I normally start with 80 grit and finish up with 300 . When sanding the seat don't use too much pressure since it will tear the foam. It also helps if the paper is has curved edges to avoid accidentally cutting the foam. A final smooth finish can be obtained by waving a heat gun over it. Practice on a scrap piece first and don't hold it to close or on a high heat setting. Once the foam starts to darken in colour and get shiny, stop - otherwise your new seat will end up being a blob of plastic.
Try, try and try again
While making the seat, keep trying it out in your kayak with hip pads and backrest in place. Sit in the kayak for at least an hour to check if your feet fall asleep. You can read a book or watch TV Just make sure nobody pops around to visit. When trying out the pictured seat I had a problem with the sleepy feet syndrome that I was determined to solve.( The problem turned out to be that my pump, which I store between the hip pads and hull, was causing a very slight pressure against my leg. ) I had the kayak on a mattress in my lounge when some work mates turned up. I still haven't been able to convince them that I don't tuck my kayak up at night to go to sleep, and no I don't read it bedtime stories!
Colour it in - The Two Tone seat
Thick foam normally only comes in a couple of colours - Gray and Green. But The Warehouse, Doyles, Rebel Sports, and other discount stores sell foam Backpackers mattresses in a variety of colours. To get a two tone seat like in the picture above you have to inlay the thinner backpackers mattress into the thick foam:

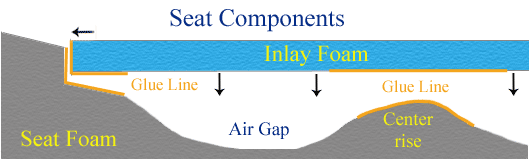

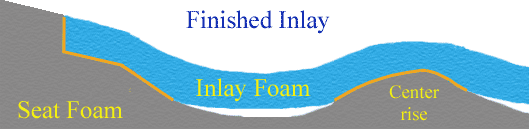

- Make the seat out of thick foam until you have finished the 80grt sandpaper stage.Draw a template of the design you want on paper. Copy the template on to the underside of the thin coloured foam (a ultra thin felt works better then pencil or pen)Using a craft knife, cut out the design. If the foam starts to pucker around the blade, snap of a fresh blade.Hold the thin foam on your seat and cut the outline into the thick foam. You just want to mark it so don't cut too deep.Snap off a fresh blade and measure blade length to the thickness of the thin foam. Cut the seat to the depth of the blade. Hold the knife vertical so you don't cut it on an angle.Cut out another outline at least 2cm inside the first one. Remove excess foam from inside the 2nd cut to at least the depth of the insert. If you want a very comfortable seat you can cut out more foam from this area to create a couple of air cushions where your bones are most pointed. Remember to leave a higher strip down the middle of the seat which flares out into what's called a pleasure pod .Keeping the knife more or less horizontal, cut out foam to the first outline cut you made. Keep this to the depth of the insert and try to follow the slope of the seat. Clean up any excess or loose foam. If you are using air gaps under the inlay then run some silicone sealant along the inside edge of the "frame".Spread Ados F3 or similar waterproof contact cement around the frame and the inlay. Make sure the vertical edges of both pieces are also spread with glue. If any gets on top of the inlay or seat, wipe off immediately since it will be impossible to remove latter. Leave it to dry tack free. Carefully line up inlay, starting at one end push the inlay into position and pinch the two together to close the gap. Work your way around the seat. You can stretch the foam slightly and the glue will still grab.
- Finish up by sanding and heat gunning. You may not have to sand the inlay since it is already factory smooth.
If you are going to try the air cushion idea, then you will need to make sure it is completely air tight (thus the sealant). Any gap will suck in water which is impossible to get rid off. It will also make rude noises whenever you sit on it! The seat back and hip pads are made the same way.
It is also worth while carving some knee hooks, padding under the deck and the rudder pedals. If you paddle barefooted then add some on the hull underneath the pedals.
